Tensile Strength Test Machine Electronic Servo Desktop Tensile Tester
Applications
Desktop Tensile Testing Machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps for paper, tape, film, etc.
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Standard Features
| Item | Description |
| Frame capacity | 200kg |
| Load cell brand | China brand, 200kg (5,10,50,100kg are optional) |
| Load accuracy | 1% F.S |
| Printing | Built-in Printer |
| Control system | Controller with LED |
| Motor | Adjustable-speed motor, ball screw rod |
| Force reading | KG/N/LB |
| Vertical test space | 900mm including fixture |
| Test speed | 50~300mm/min (adjustable by rotary knob) |
| Software | TM 2101 |
| Data display | Max. break force |
| Safety features | Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat |

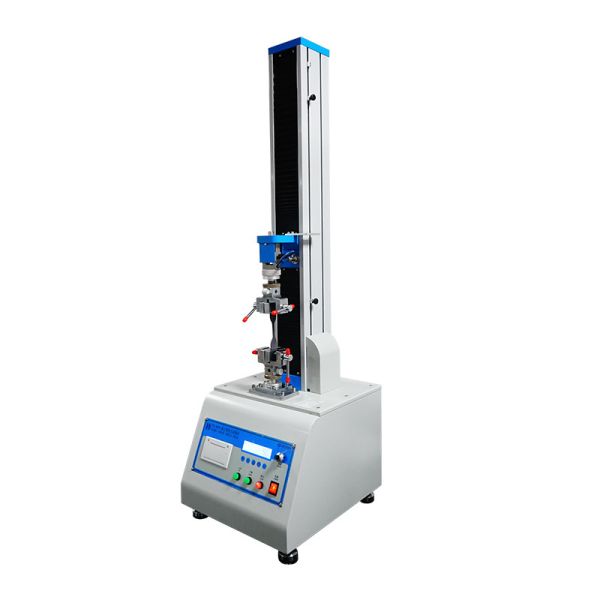

Product Image:
Product Features:
1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)
2. Control system: Microcomputer
3. Displacement resolution: 0.001mm
4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.
Adhesives Tape/Pressure Sensitive Tape
EN 1719: Loop Tack Test
ASTM D3654: Shear Adhesion Test
ASTM D3759: Tensile &Elongation Test
FTM: 180&90 Degree Peel Test, Loop Tack
EN 1939, ASTM D3330: 180&90 Degree Peel Test
ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test
Film/Plastic Film
ASTM D882: Tensile Test
ASTM F1306: Puncture Test
ASTM D1938: Trouser Tear Test
ASTM D2732: Thermal Shrinkage Test
ASTM D1709, ISO 7765-1: Free-Falling Dart Method
ASTM D1894: Static and Kinetic Coefficients of Friction
ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test
